uPVC Plumbing Pipes
Salient Feature :
- Seamless performance
- Leak proof
- Immunity to electrolytic or galvanic corrosion
- No fungal or biological growth
- Less wear resistance
- Nominal rates
- Sturdy construction
- Dimensionally accurate
- Reliability
- Excellent durability
- Quality assured
- Easy to install
USE IN APPLICATIONS
- Cold water supply in building construction
- Industrial process lines
- Swimming pools
- Salt water lines
- Aggressive / corrosive fluid transportation
- Dye plants, chrome, zinc plating and tanning plants
- Sugar, paper and distillery industries
- Coal washing and ash handling
Technical Parameters
| Nominal Diameter | Nominal | Outer Diameter (mm) | SHEDULE 40 | SHEDULE 80 | |||||
| Diameter | Diameter | Wall Thickness (mm) | Working Pressure at 23°c | Wall Thickness (mm) | Working Pressure at 23°c | ||||
| Inch | MM | Min. | Max. | Min. | Max. | Kg/cm2 | Min. | Max. | Kg/cm2 |
| 0.50" | 15 | 21.2 | 21.5 | 2.8 | 3.3 | 41.4 | 3.7 | 4.2 | 58.6 |
| 0.75" | 20 | 26.6 | 26.8 | 8.9 | 3.4 | 33.1 | 3.9 | 4.4 | 47.6 |
| 1.00" | 25 | 33.3 | 33.5 | 3.4 | 3.9 | 31.1 | 4.5 | 5.1 | 43.4 |
| 1.25" | 35 | 42.0 | 42.3 | 3.6 | 4.1 | 25.5 | 4.8 | 5.4 | 35.9 |
| 1.50" | 40 | 48.01 | 48.4 | 3.7 | 4.2 | 22.8 | 5.1 | 5.7 | 32.4 |
| 2.00" | 50 | 60.2 | 60.5 | 3.9 | 4.4 | 19.3 | 5.5 | 6.2 | 27.6 |
| 2.50" | 65 | 72.8 | 73.2 | 5.2 | 5.8 | 20.7 | 7.0 | 7.8 | 29.0 |
| 3.00" | 80 | 88.7 | 89.1 | 5.5 | 6.1 | 17.9 | 7.6 | 8.5 | 25.5 |
| 4.00" | 100 | 114.1 | 114.5 | 6.0 | 6.7 | 15.2 | 8.6 | 9.6 | 22.1 |
uPVC Plumbing FITTING
uPVC Fittings
Salient Feature
- Durability
- Reliability
- Sturdy construction
- Economic rate
- Water and leak proof
uPVC Brass Fittings
Salient Feature
- Dimensional accuracy
- High quality
- On time delivery
- Develop as per ASTM Standard
- Reliable
- Durable
- Corrosion resistant
-

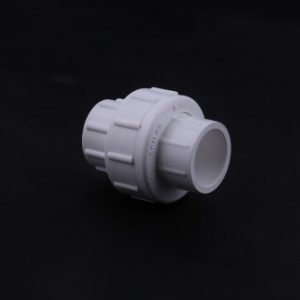

UNION
-

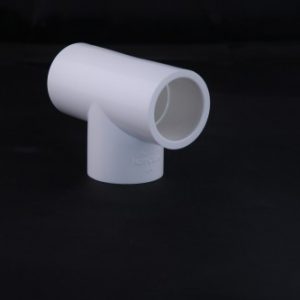

TEE
-

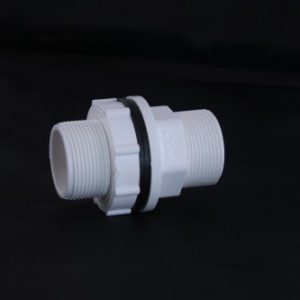

TANK CONNECTOR
-

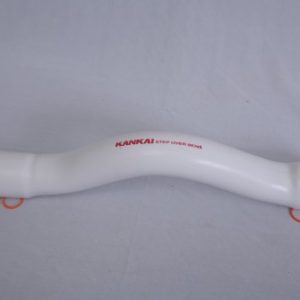

STEP OVER BEND
-

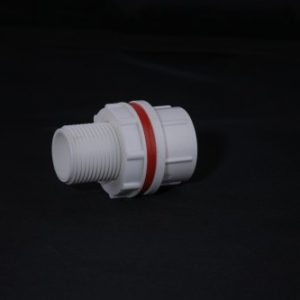

SOCKET TANK NIPPLE
-

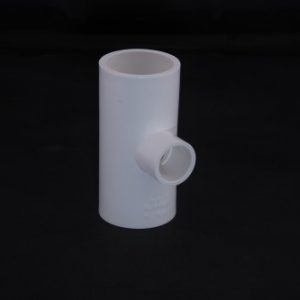

REDUCER TEE
-

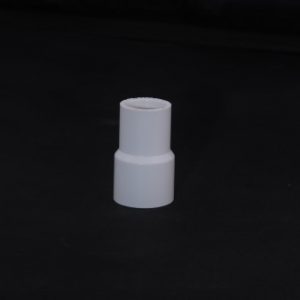

REDUCER COUPLER
-

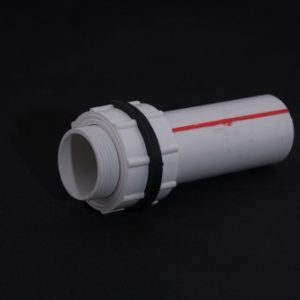

PIPE TANK NIPPLE
-

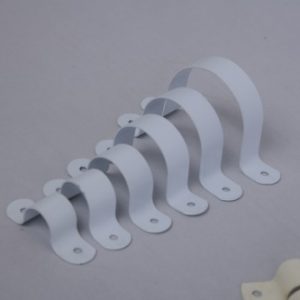

METAL CLAMP
-

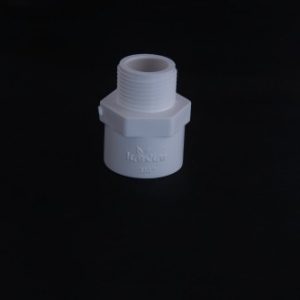

MALE THREADED ADAPTOR (PLASTIC)
-

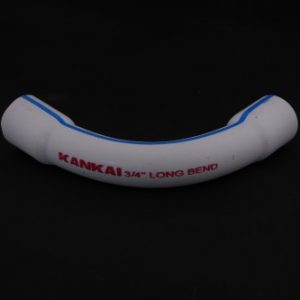

LONG BEND
-

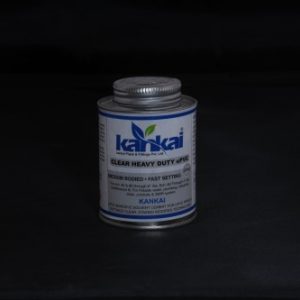

HEAVY DUTY SOLVENT CEMENT (TIN PACKING)
-

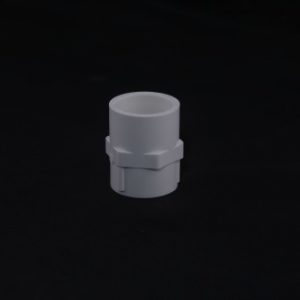

FEMALE THREADED ADAPTOR (PLASTIC)
-

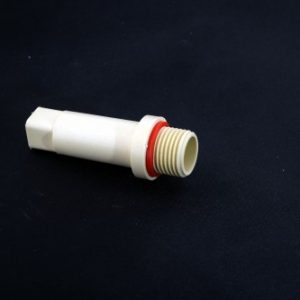

END PLUG
-

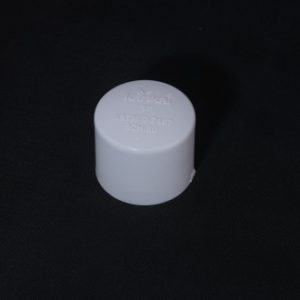

END CAP
-

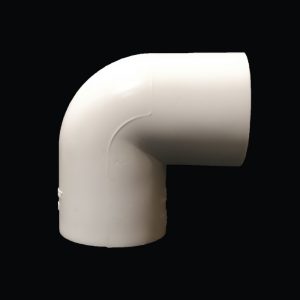

ELBOW 90°
-

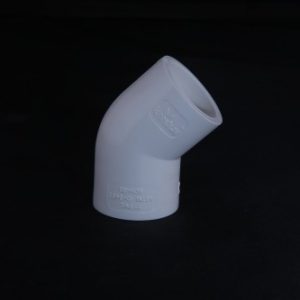

ELBOW 45°
-

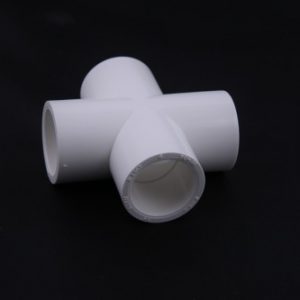

CROSS TEE
-

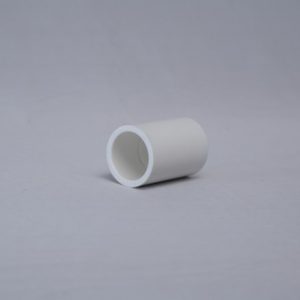

COUPLER
-
BRASS TEE
-

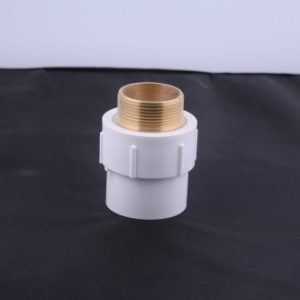

BRASS MTA
-

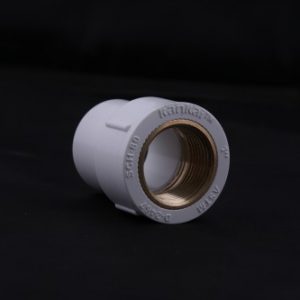

BRASS FTA
-

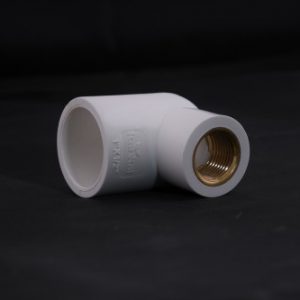

BRASS ELBOW
-

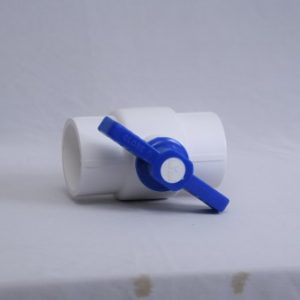

BALL BALVE
